Overview

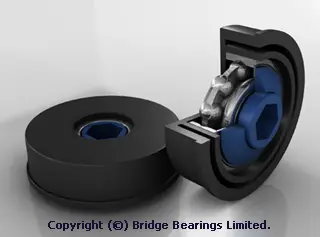

Conductive plastic housings dissipate static charges whilst keeping operating noise to a minimum and protecting against shock loads.
Precision bearings in plastic housings lend themselves to powered roller applications.
All products are fitted with high quality deep groove chrome steel ‘ZZ’ shielded precision bearings. 2RS stainless steel bearings are available on request.
Personalised branding available (when supplied as a complete roller).

REFERENCE	A +/- 0.1mm	B +/- 0.2mm	C mm	D + 0.15 mm	LOAD RATING Kg	TUBE Ø x wall mm
6002ZZ + PREC 47	46.1	14.4	6	Ø8, 8 Hex, Ø10, Ø11, 11 Hex, Ø12, Ø15	50	50 x 1.5
6002-2RS + PREC 47 STAINLESS STEEL	46.1	14.4	6		50	50 x 1.5
6002ZZ + PREC 37	36.1	14.4	6		50	40 x 1.5
6002ZZ + PREC 56	55.1	14.4	6		50	60 x 2
