Overview

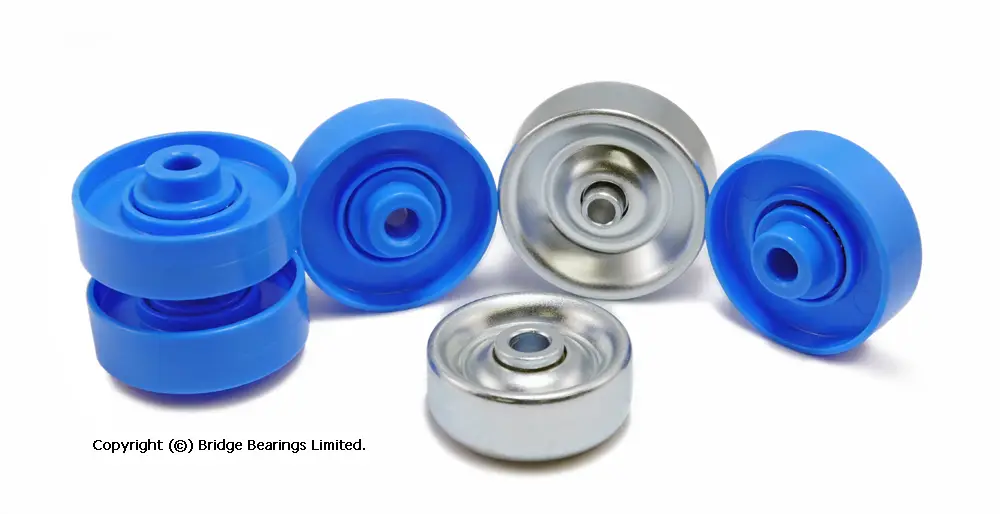

  • Designed to convey light packages and are particularly suited to small inside radius gravity bends and flexible conveyors.

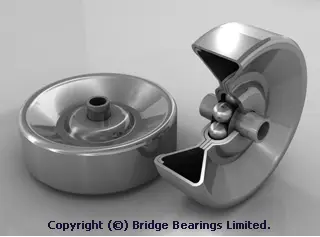

  • PR steel skate wheels have case hardened ball contact surfaces to ensure a long life, trouble free service.
  • Supplied lightly oiled or greased for heavier applications.
  • Standard finish is zinc plated however XHD version has a yellow passivation finish.

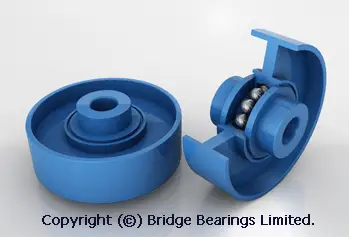

  • BBP plastic skate wheels are produced using a combination of complex polymers. Supplied with stainless steel balls.
REFERENCE A
mm		 B
mm		 C
mm		 D
mm		 STATIC LOAD
Kg
PR 49 49.2 17 19 Ø6.35″ 34
PR55 XHD 5/16″ 50 15.8 23.7 Ø7.90″ 45
BBP48/8R 48 15 24 Ø8.10mm 10
BBP48/1/4″R 48 15 24 Ø6.60mm 10
Skate Wheels Technical Drawing
Skate Wheels Technical Drawing

PR Skatewheel

Skate Wheels Technical Drawing
Skate Wheels Technical Drawing

bbp-skatewheel
